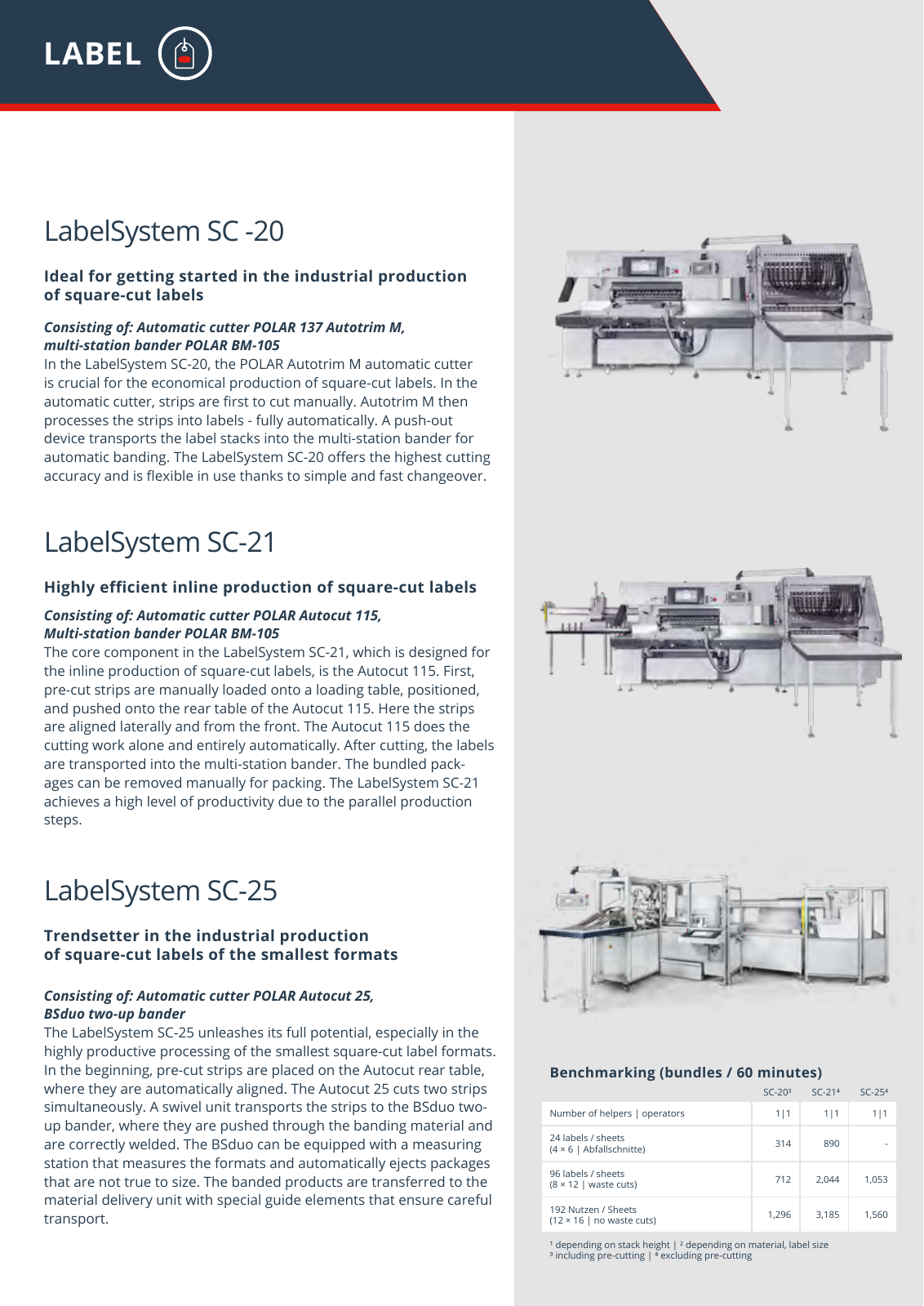

LabelSystem SC 20 Ideal for getting started in the industrial production of square cut labels Consisting of Automatic cutter POLAR 137 Autotrim M multi station bander POLAR BM 105 In the LabelSystem SC 20 the POLAR Autotrim M automatic cutter is crucial for the economical production of square cut labels In the automatic cutter strips are first to cut manually Autotrim M then processes the strips into labels fully automatically A push out device transports the label stacks into the multi station bander for automatic banding The LabelSystem SC 20 offers the highest cutting accuracy and is flexible in use thanks to simple and fast changeover LabelSystem SC 21 Highly efficient inline production of square cut labels Consisting of Automatic cutter POLAR Autocut 115 Multi station bander POLAR BM 105 The core component in the LabelSystem SC 21 which is designed for the inline production of square cut labels is the Autocut 115 First pre cut strips are manually loaded onto a loading table positioned and pushed onto the rear table of the Autocut 115 Here the strips are aligned laterally and from the front The Autocut 115 does the cutting work alone and entirely automatically After cutting the labels are transported into the multi station bander The bundled pack ages can be removed manually for packing The LabelSystem SC 21 achieves a high level of productivity due to the parallel production steps LabelSystem SC 25 Trendsetter in the industrial production of square cut labels of the smallest formats Consisting of Automatic cutter POLAR Autocut 25 BSduo two up bander The LabelSystem SC 25 unleashes its full potential especially in the highly productive processing of the smallest square cut label formats In the beginning pre cut strips are placed on the Autocut rear table where they are automatically aligned The Autocut 25 cuts two strips simultaneously A swivel unit transports the strips to the BSduo two up bander where they are pushed through the banding material and are correctly welded The BSduo can be equipped with a measuring station that measures the formats and automatically ejects packages that are not true to size The banded products are transferred to the material delivery unit with special guide elements that ensure careful transport Benchmarking bundles 60 minutes SC 20 SC 21 SC 25 Number of helpers operators 1 1 1 1 1 1 24 labels sheets 4 6 Abfallschnitte 314 890 96 labels sheets 8 12 waste cuts 712 2 044 1 053 192 Nutzen Sheets 12 16 no waste cuts 1 296 3 185 1 560 depending on stack height depending on material label size including pre cutting excluding pre cutting LABEL
