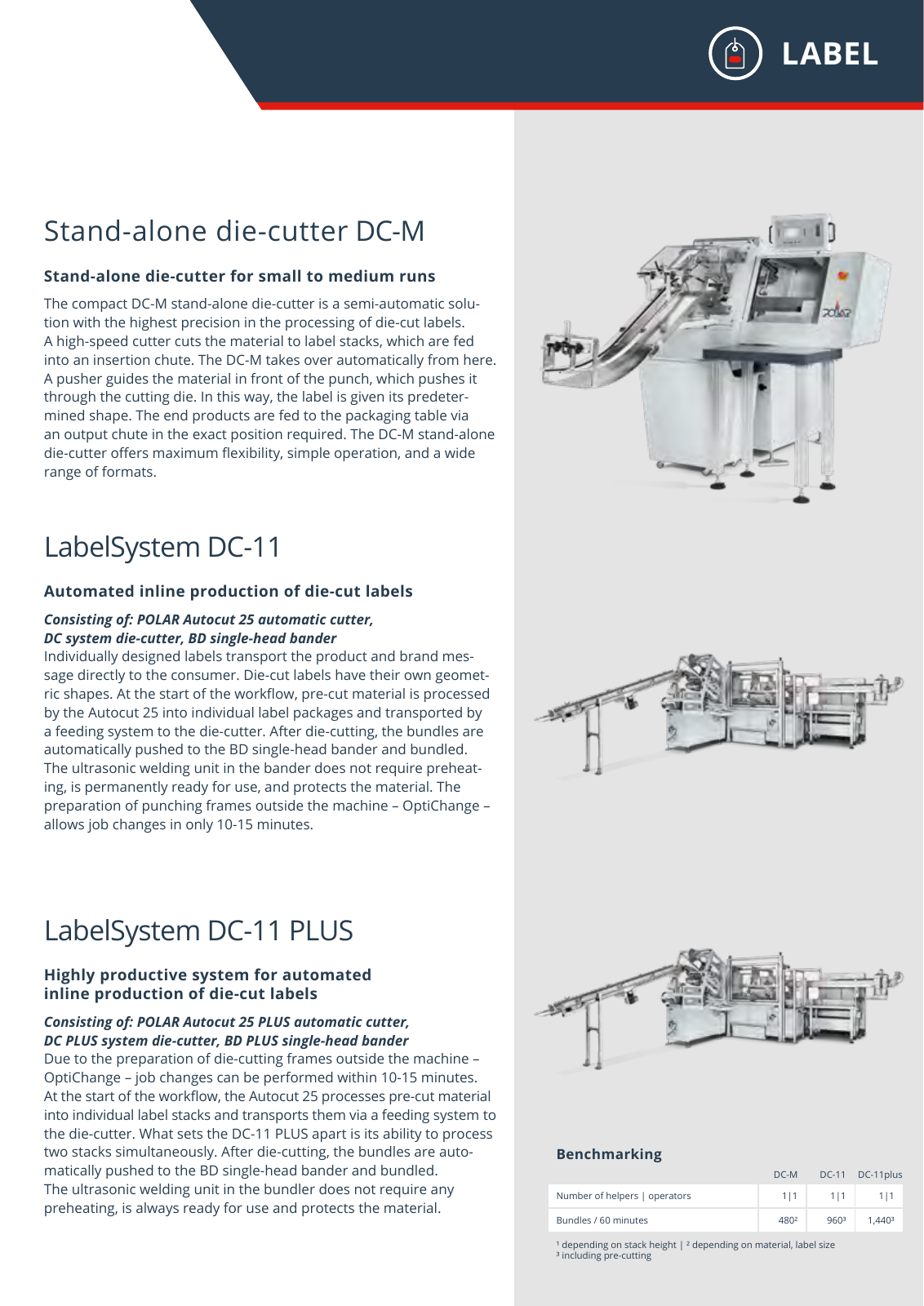

Stand alone die cutter DC M Stand alone die cutter for small to medium runs The compact DC M stand alone die cutter is a semi automatic solu tion with the highest precision in the processing of die cut labels A high speed cutter cuts the material to label stacks which are fed into an insertion chute The DC M takes over automatically from here A pusher guides the material in front of the punch which pushes it through the cutting die In this way the label is given its predeter mined shape The end products are fed to the packaging table via an output chute in the exact position required The DC M stand alone die cutter offers maximum flexibility simple operation and a wide range of formats LabelSystem DC 11 Automated inline production of die cut labels Consisting of POLAR Autocut 25 automatic cutter DC system die cutter BD single head bander Individually designed labels transport the product and brand mes sage directly to the consumer Die cut labels have their own geomet ric shapes At the start of the workflow pre cut material is processed by the Autocut 25 into individual label packages and transported by a feeding system to the die cutter After die cutting the bundles are automatically pushed to the BD single head bander and bundled The ultrasonic welding unit in the bander does not require preheat ing is permanently ready for use and protects the material The preparation of punching frames outside the machine OptiChange allows job changes in only 10 15 minutes LabelSystem DC 11 PLUS Highly productive system for automated inline production of die cut labels Consisting of POLAR Autocut 25 PLUS automatic cutter DC PLUS system die cutter BD PLUS single head bander Due to the preparation of die cutting frames outside the machine OptiChange job changes can be performed within 10 15 minutes At the start of the workflow the Autocut 25 processes pre cut material into individual label stacks and transports them via a feeding system to the die cutter What sets the DC 11 PLUS apart is its ability to process two stacks simultaneously After die cutting the bundles are auto matically pushed to the BD single head bander and bundled The ultrasonic welding unit in the bundler does not require any preheating is always ready for use and protects the material Benchmarking DC M DC 11 DC 11plus Number of helpers operators 1 1 1 1 1 1 Bundles 60 minutes 480 960 1 440 depending on stack height depending on material label size including pre cutting LABEL
