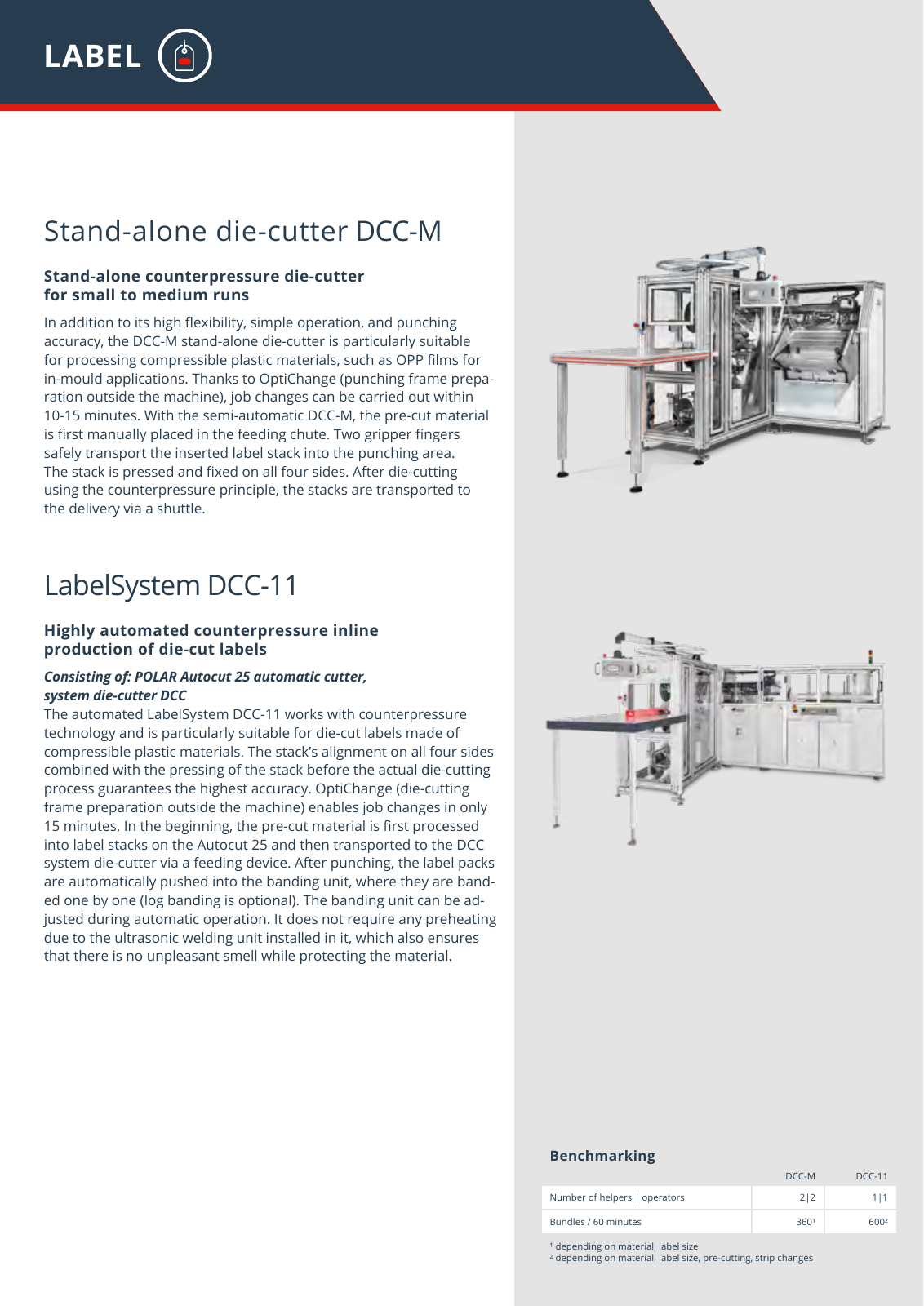

Stand alone die cutter DCC M Stand alone counterpressure die cutter for small to medium runs In addition to its high flexibility simple operation and punching accuracy the DCC M stand alone die cutter is particularly suitable for processing compressible plastic materials such as OPP films for in mould applications Thanks to OptiChange punching frame prepa ration outside the machine job changes can be carried out within 10 15 minutes With the semi automatic DCC M the pre cut material is first manually placed in the feeding chute Two gripper fingers safely transport the inserted label stack into the punching area The stack is pressed and fixed on all four sides After die cutting using the counterpressure principle the stacks are transported to the delivery via a shuttle LabelSystem DCC 11 Highly automated counterpressure inline production of die cut labels Consisting of POLAR Autocut 25 automatic cutter system die cutter DCC The automated LabelSystem DCC 11 works with counterpressure technology and is particularly suitable for die cut labels made of compressible plastic materials The stack s alignment on all four sides combined with the pressing of the stack before the actual die cutting process guarantees the highest accuracy OptiChange die cutting frame preparation outside the machine enables job changes in only 15 minutes In the beginning the pre cut material is first processed into label stacks on the Autocut 25 and then transported to the DCC system die cutter via a feeding device After punching the label packs are automatically pushed into the banding unit where they are band ed one by one log banding is optional The banding unit can be ad justed during automatic operation It does not require any preheating due to the ultrasonic welding unit installed in it which also ensures that there is no unpleasant smell while protecting the material Benchmarking DCC M DCC 11 Number of helpers operators 2 2 1 1 Bundles 60 minutes 360 600 depending on material label size depending on material label size pre cutting strip changes LABEL
