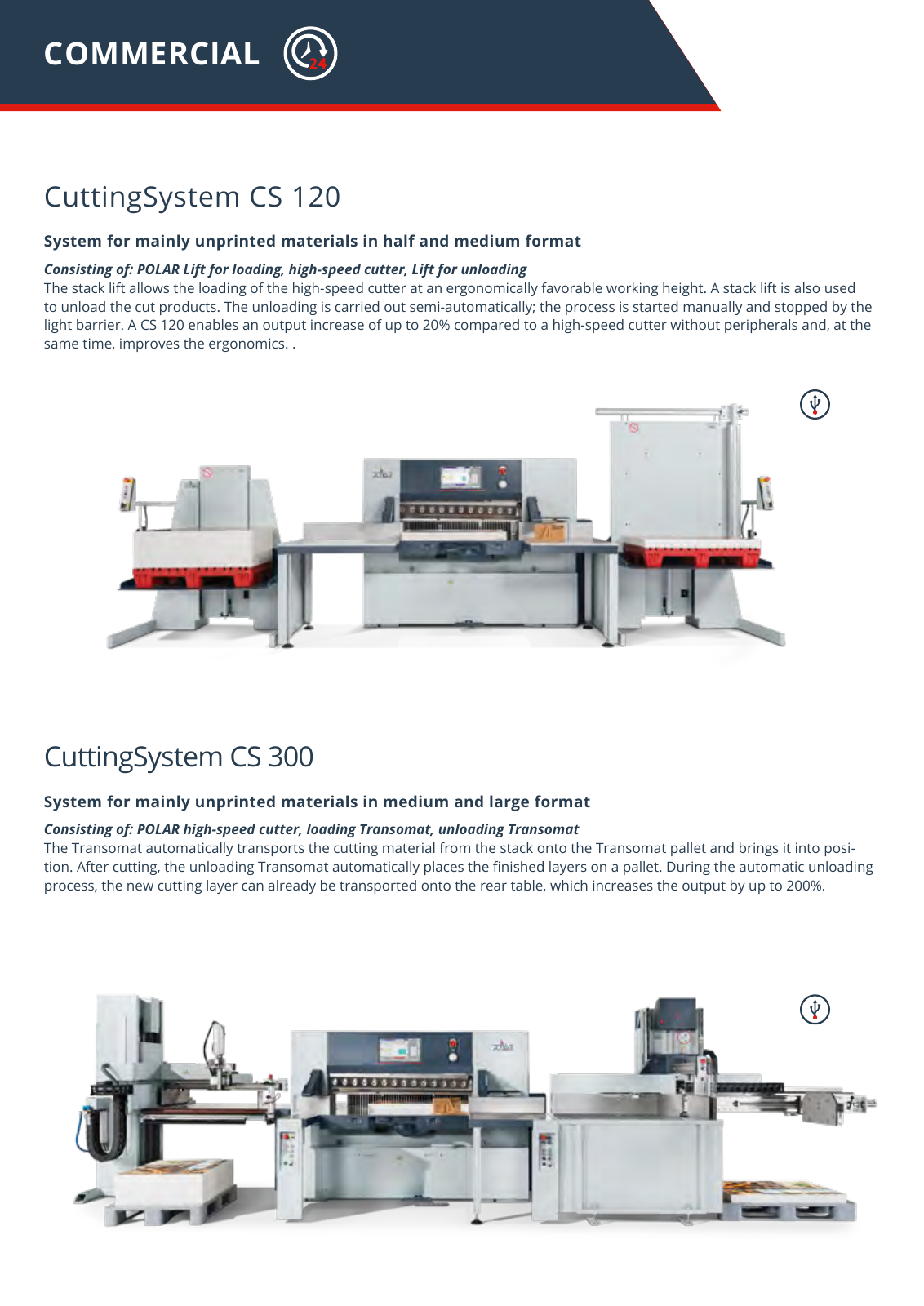

CuttingSystem CS 300 System for mainly unprinted materials in medium and large format Consisting of POLAR high speed cutter loading Transomat unloading Transomat The Transomat automatically transports the cutting material from the stack onto the Transomat pallet and brings it into posi tion After cutting the unloading Transomat automatically places the finished layers on a pallet During the automatic unloading process the new cutting layer can already be transported onto the rear table which increases the output by up to 200 CuttingSystem CS 120 System for mainly unprinted materials in half and medium format Consisting of POLAR Lift for loading high speed cutter Lift for unloading The stack lift allows the loading of the high speed cutter at an ergonomically favorable working height A stack lift is also used to unload the cut products The unloading is carried out semi automatically the process is started manually and stopped by the light barrier A CS 120 enables an output increase of up to 20 compared to a high speed cutter without peripherals and at the same time improves the ergonomics COMMERCIAL
