POLAR CuttingSystem 200 PACE

POLAR CuttingSystem 200 PACE

Cutting System characterized by highly-automated processes for medium-size products

For medium-size products, with cutting materials sized up to max. 75 x 106 cm, POLAR CuttingSystem 200 PACE automates finishing processes. The word "PACE" stands for "Polar Automation for Cutting Efficiency" and implies that material is moved with fully automatic turning gripper systems.

In POLAR's CuttingSystem PACE gripper loading systems fetch the reams from  automatic joggers, air-pallet lifts, piling-board shelves or Transomat B units and take them onto the rear table.

POLAR turning grippers called Autoturn automatically rotate undivided reams on the high-speed cutter rear table.

Cutting systems of performance class "PACE" raise the efficiency of POLAR CuttingSystems by up to 100 percent compared to a conventional CuttingSystem 200.

The workflow: A loading lift takes the material to be cut onto the optimal working height for the operator who puts it on the automatic jogger. After jogging is completed, the Autotrans gripper system transports the material onto the rear table of the high-speed cutter. On the rear table, the Autoturn turning gripper moves the material in an automated way. After cutting is completed, the POLAR Transomat E unit automatically stacks the reams on pallets while cutting can be continued.

POLAR components are also available with optional performance-enhancing features: Precise measurement of quantities with the counting-scale component.

POLAR CuttingSystem PACE
Components / Technical Data Medium size
Paper size cm 75 x 106
Stack Lift LW (loading) Type LW 1200-4
 Automatic Jogger Type RA-4
Gripper loading system Type Autotrans and Autoturn
High-Speed Cutter Model: POLAR N 137 AT
Transomat E Type TRE 130-4

Components

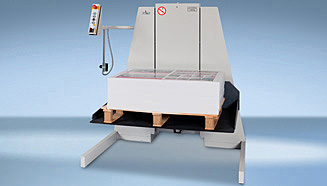

POLAR Stack Lifts for loading

Stack Lifts LW

When high-speed cutters need to be loaded, POLAR LW stack lifts ensure better ergonomic conditions and ease the workload by providing a convenient working height.

POLAR Automatic jogger RA

Automatic jogger RA

prepares cutting material in reams

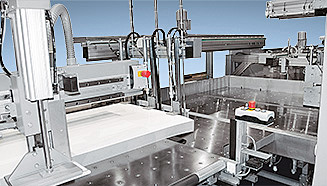

Gripper loading system

Gripper loading systems

for the automatic loading of high-speed cutters directly onto the rear table.

High-Speed Cutter POLAR N 115 PRO HD

High-Speed Cutters

POLAR high-speed cutters are the key components in finishing.

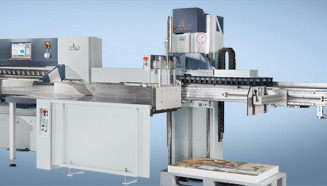

Unloading with POLAR Transomat

Transomat E

When high-speed cutters need to be unloaded, Transomat units are a performance-enhancing alternative to stack lifts.
