Automatic cutter POLAR Autocut 25

Automatic cutting machine POLAR Autocut 25

for the efficient production of square-cut and die-cut labels

The automatic cutter POLAR Autocut 25 is the key component of the DC-11, DCC-11 and SC-25 LabelSystems for the efficient production of labels:

The precut strips are manually positioned on the loading table and afterwards pushed onto the Autocut rear table. After their sides and fronts have been aligned they are cut into labels in a program controlled process.

After being cut, the products are transferred via a swivel unit to the feeder unit of the system die-cutter or to the two-up banding device BSduo.

Automatic Cutting Machines POLAR Autocut 25
Cutting width 210 mm
Clamp opening up to max. 120 mm
Label size, max. 170 x 210 mm
Label size, min. (depending on component) 20 x 40 mm
Strip width, max. 210 mm
Strip width, min. 40 mm
Feed depth 1080 mm
Component for ..... LabelSystem DC-11, DCC-11
LabelSystem SC-25

Configuring with

1 Option to

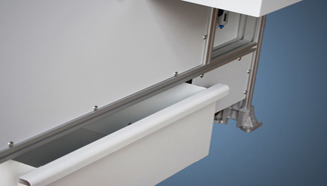

  • Waste container

    Waste container
