POLAR CuttingSystem 160

POLAR CuttingSystem 160

Cutting System to increase performance in large size

Up to 65 % more output adverse a high-speed cutter without peripheral equipment

For large-size products, such as 89 x 126 cm, POLAR CuttingSystem 160 offers performance-enhancing components which streamline the loading, jogging, cutting and unloading processes. When the operator produces an average of 10 reams per hour on a stand-alone high-speed cutter, this output can be increased to up to 16 reams per hour when system components are used, while reducing at the same time the physical working load.

Cutting System for improving the output, ergonomics and quality

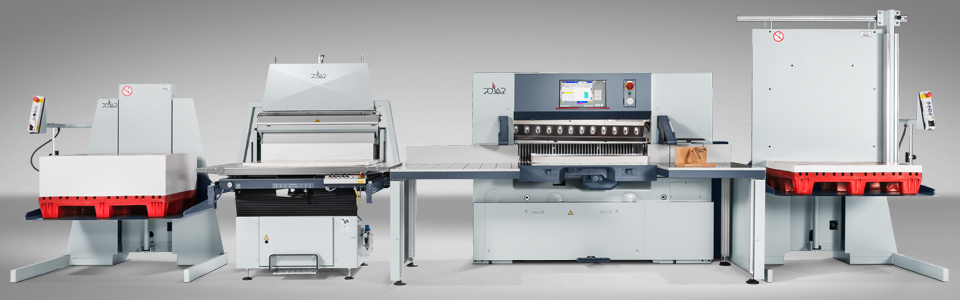

The workflow: A loading lift takes the material to be cut onto the optimal working height for the operator who puts it on the automatic jogger. After jogging is completed, he pushes the material onto the front table of the high-speed cutter. After cutting, the pallet is unloaded with the help of a lift which also ensures that the operator's back will be saved.

POLAR components are also available with optional performance-enhancing features: High-speed cutter with PRO equipment or model AT featuring automatic removal of waste cuttings, stack lifts with larger platforms and/or carrying capacity increased to 2000 kg, automatic jogger RA with air-removing roller, and determination of quantity by a counting scale component.

ComponentsTechnical Data / large size
Paper size cm 89 x 126
Stack Lift LW (loading) Type LW 1200-6
 Automatic Jogger Type RA-6
High-Speed Cutter Model: POLAR N 155
Stack Lift LW (unloading) Type LW 1200-6

Components

POLAR Stack Lifts for loading

Stack Lifts LW

When high-speed cutters need to be loaded, POLAR LW stack lifts ensure better ergonomic conditions and ease the workload by providing a convenient working height.

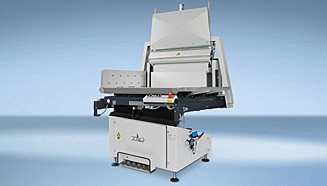

POLAR Automatic jogger RA

Automatic jogger RA

prepares cutting material in reams

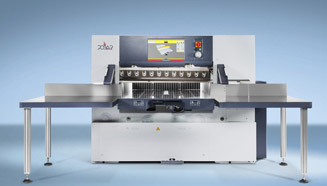

High-Speed Cutter POLAR N 115 PRO HD

High-Speed Cutters

POLAR high-speed cutters are the key components in finishing.

POLAR Stack Lifts for unloading

Stack Lifts LW

After cutting is completed POLAR stack lift LW with angular boards provides perfectly aligned, manual piling.
