High-speed cutter POLAR N 155

High-speed cutter POLAR N 155

The successful model for offset class 100 x 140

Configure your POLAR N 155 high-speed cutter with performance-enhancing options tailored to your own requirements.

POLAR high-speed cutter N 155 is mainly employed for handling offset class 100 × 140 cm. Formats with diagonals up to 1,550 mm can be conveniently turned on the high-speed cutter. When dealing with larger sizes the material being cut must be turned on the front table.

By adding a gripper loading system, the high-speed cutter can be complemented to form a central component in a PACE system.

High-speed cutter N 155 PLUS:
The allrounder with 18.5“ color display and touch-screen operation. Suitable for all standard cutting jobs. Featuring automatic graphic programming to ensure a highly-automated process. Examples of equipment: Graphic operator guidance, with various language packages. Change-over measurement system (metric, inch or shaku). Configurable user interface, OptiKnife knife changing system and many other features.

High-speed cutter N 155 PRO HD:

The programmable high performance model with a capacitive 21.5'' Touch-Screen display and real image preview for high-end applications thanks to job specific programmable parameter, label and distortion correction as well as an extended range of options.

Our model  N 155 AT HD is the most-efficient model of this type of high-speed cutter featuring automatic waste disposal during the cutting process.

High-speed cutter POLAR N 155
Cutting width 1550 mm
Feed depth 1550 mm (optional 2000 mm)
Clamp opening max. 165 mm
Depth of front table 750 mm
Dimensions width x depth D 2980 mm  x  W 2750 mm
Component for ..... Large size (89 x 126 • 102 x 142 cm)

Configuring with

21 Options to

  • Compucut®

    Compucut® - Transfer of prepress data to generate cutting programs externally > reduces set-up time to almost zero

    Barcode

    Barcode - Enables automatic loading of the appropriate cutting program

    Process Visualization

    Process Visualization - Minimum proneness to errors through graphics that visually represent material handling.

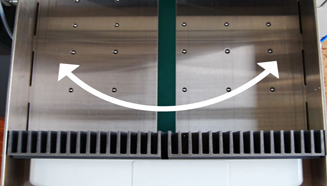

  • Swivel backgauge

    Swivel backgauge - Easily ensures squareness by motorized backgauge adjustment

    Tilting backgauge

    Tilting backgauge - Easily corrects overcut / undercut by motorized backgauge adjustment

    Downholder in front of knife

    Downholder in front of knife - Prevents the cut products from getting mixed up and drifting away.

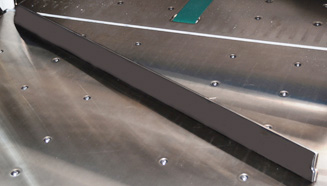

  • False clamp plate

    False clamp plate, 60 mm (cutting width: 70 mm) - Smaller formats can be cut without any loss of quality

    Automatic waste removal - POLAR Autotrim

    Autotrim - Efficiency is increased by up to 40% through automatic waste removal

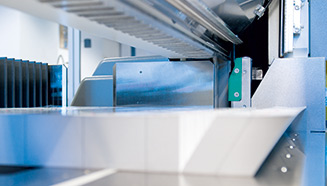

    Retractable small format guide

    Retractable small format guide - Prevents small labels from being stuck between the front and rear side gauges on the right

  • AirKnife

    AirKnife - Prevents statically charged cutting waste or plastic films from sticking on the knife

    AntiStickKnife

    AntiStickKnife - Special coating that prevents the adhesion of glues. > This increases the productivity by up to 30%.

    Downholder clamp

    Downholder clamp - Locks any material which is not lying planend and improves the alignment against the backgauge

  • Automatic pressure regulation

    Automatic clamping pressure adjustment - Integrated sensors in the table ensure optimum clamping > higher cutting precision, longer knife service life

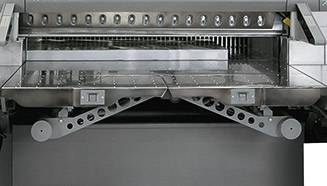

    ErgoFrontTable

    ErgoFrontTable - The machine table is extended by 500 mm with two tiltable air tables > Easier loading and unloading

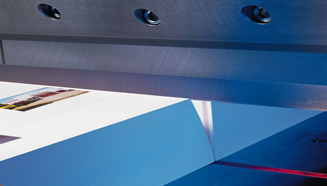

    Optimized cutting cycle

    Optimized cutting cycle - Efficiency is increased by up to 10% through cutting constant cutting sequences

  • Super air table

    Super air table - Reinforced air cushion allows to handle heavy materials much easier

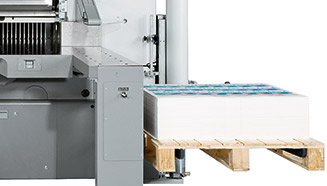

    Firmly mounted lift

    Firmly mounted lift - A lift attached to the frame > space saving alternative to the self-contained lift

    CutManager

    CutManager - Workflow-Integration allows to link up prepress and HD Postpress Manager for job and operating data

  • Waste container

    Waste container

    HSS knife

    HSS knife

    Carbide-tipped knife (premium)

    Carbide-tipped knife (premium)
