Unloading with POLAR Transomat

Transomat E

for unloading high-speed cutters POLAR N

When high-speed cutters need to be unloaded, Transomat units are a performance-enhancing alternative to stack lifts.

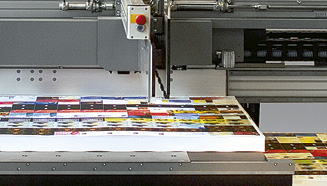

The POLAR Transomat E unit automatically deposits parted or complete reams on pallets while the machine continues cutting. This lowers production costs by 25% to 70%, depending on the cutting program.

With its patented movable pallet tip POLAR Transomat E achieves perfectly aligned edges.

Advantages:

  • Enhanced productivity: Stacking and cutting are performed simultaneously
  • This improves the quality: Stacks with precisely aligned edges can be processed immediately and much faster.

Transomat model Half-size
SRA3
up to 52 x 74
Medium-size
up to
75 x 105 cm
Large-size
up to
126 x 164 cm
Transomat E ... 120-4  160-6
Transomat E ... 130-4 (-5) 160-7S
Component for
high-speed cutter
POLAR N 115
POLAR N 137
POLAR N 155
POLAR N 176

Configuring with

3 Options to

  • Automatic size adjustment

    Automatic size adjustment - Simplified operation due to fully-automated size adjustment via sensor.

    Plier with hold-down clamp

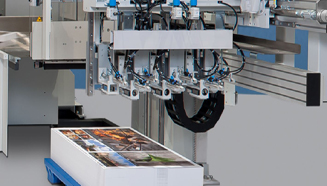

    Plier with hold-down clamp - lock the cutting ream and the paper stack in position while the paper is put down. Especially recommendable for large-size materials which are difficult to handle.

    OPP Optical Pallet Pointer

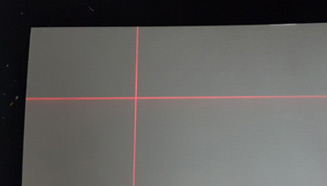

    OPP Optical Pallet Pointer - Pile position on pallet is visualized by cross light laser. Pallet can be perfectly aligned to position of pile.
