POLAR CuttingSystem PACE

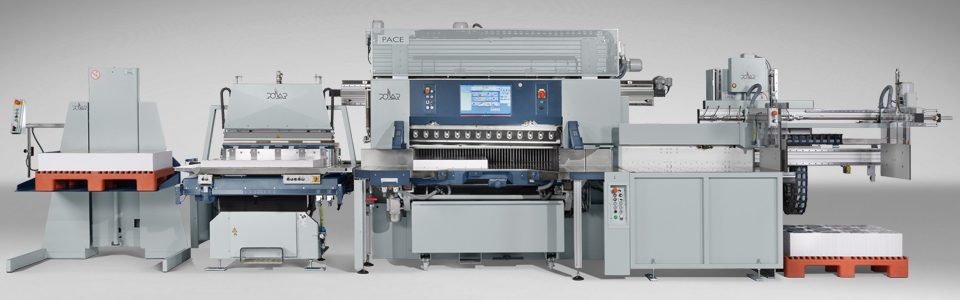

POLAR CuttingSystem 200 PACE

Cutting System characterized by highly-automated processes for large-size products

For large-size products, with cutting materials sized up to max. 126 x 164 cm, POLAR CuttingSystems 200 PACE are the top technical configuration. The word "PACE" stands for "Polar Automation for Cutting Efficiency" and implies that material is moved with fully automatic turning gripper systems.

In POLAR's CuttingSystem 200 PACE gripper-loading systems fetch the reams from  automatic joggers, air-pallet lifts, piling-board shelves or Transomat B units and take them onto the rear table.

POLAR turning grippers called Autoturn automatically rotate undivided reams on the high-speed cutter rear table.

Cutting systems of performance class "PACE" raise the efficiency by up to 100 percent compared to a conventional CuttingSystem 200.

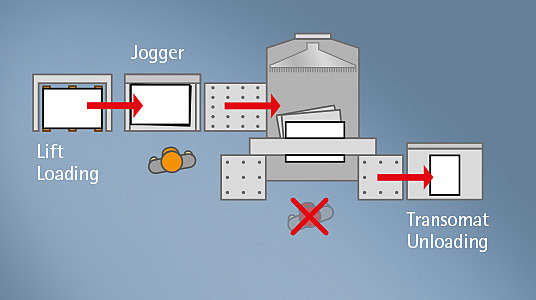

The workflow: A loading lift takes the material to be cut onto the optimal working height for the operator who puts it on the automatic jogger. After jogging is completed, the Autotrans gripper system transports the material onto the rear table of the high-speed cutter. On the rear table, the Autoturn turning gripper moves the material in an automated way. After cutting is completed, the POLAR Transomat E unit automatically stacks the reams on pallets while cutting can be continued.

POLAR components are also available with optional performance-enhancing features: Stack lifts with larger platform and/or carryimg capacity increased to 2000 kg, automatic joggers RAH (for unloading to the rear) including air-removing roller. Precise measurement of quantities due to integrated counting-scale component.

POLAR CuttingSystem PACE
Components / Technical Data Large sizes
Paper size cm 89 x 126 105 x 145 126 x 164
Stack Lift LW (loading) Type LW 1200-6 LW 1200-6 LW 2000-7S
 Automatic Jogger Type RA-6 RA-6 RA-7S
Gripper loading system Type Autotrans and Autoturn
High-Speed Cutter Model: POLAR N 155 AT POLAR N 176 AT POLAR N 176 AT
Transomat E Type E 160-6 E 160-6 E 160-7S

Components

POLAR Stack Lifts for loading

Stack Lifts LW

When high-speed cutters need to be loaded, POLAR LW stack lifts ensure better ergonomic conditions and ease the workload by providing a convenient working height.

POLAR Automatic jogger RA

Automatic jogger RA

prepares cutting material in reams

Gripper loading system

Gripper loading systems

for the automatic loading of high-speed cutters directly onto the rear table.

High-Speed Cutter POLAR N 115 PRO HD

High-Speed Cutters

POLAR high-speed cutters are the key components in finishing.

Unloading with POLAR Transomat

Transomat E

When high-speed cutters need to be unloaded, Transomat units are a performance-enhancing alternative to stack lifts.
