POLAR LabelSystem SC-25

Shaping the development in the industrial production of square-cut labels

POLAR LabelSystem SC-25 is extremely efficient and accurate in cutting. Two strips can be processed simultaneously and help to obtain new dimensions of performance of up to 1,560 packs banded in 60 minutes. It is designed as a modular system especially for industrial manufacturing of minimum-size labels. First of all, a POLAR high-speed cutter cuts the label material to strips, either in-line or off-line. Finishing is carried out in the automatic cutter POLAR Autocut 25, the central component of LabelSystem SC-25.

Workflow:

The precut strips are manually positioned on the LT-S and afterwards pushed onto the Autocut rear table. In the Autocut the strips are arranged on the rear table with their sides and front precisely aligned. Two strips, each, are cut simultaneously.

After being cut, the two labels are transferred via a swivel unit into the BSduo banding device. First, the two labels are separated. Then, a feeder unit pushes them through the banding material where they are properly welded. The banded products are transferred to the material delivery unit along special guide elements that ensure a careful transport. They can be removed for being packed.

POLAR Label System SC-25
Technical Data
Label size, min. (depending on the clamp opening) 14 x 40 mm
Label size, min. (optional)
11 x 30 mm
Label size, max. 50 x 120 mm
Clamp opening, min. 25 mm
Clamp opening, max. 100 mm
Performance max. (depending on material, label size, operator) 26 bundles / minute

Components

Automatic cutter POLAR Autocut 25

Automatic cutting machine POLAR Autocut 25

the key component of the DC-11, DCC-11 and SC-25 LabelSystems for the efficient production of die-cut labels

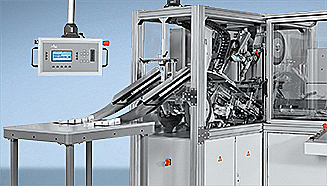

POLAR BSduo two-up banding device

BSduo two-up banding device

for automatically banding square-cut label stacks within POLAR LabelSystem SC-25
